OVERHEAD POWER WARNING SYSTEM

HVDS High Voltage Overhead Cable Detector

The TS HVDS is designed to prevent vehicles and machinery with a variable height from coming into contact with high voltage overhead power lines. The system consists of a cab-mounted detection antenna and an in-cab audio/visual warning unit. The system can sense the presence of overhead power cables from up to 100 meters away. This warns the vehicle operator of the potential danger of overhead power lines.

Be aware of overhead live line dangers and hazards

Ideal for all vehicles, plant and machinery with variable height…..Supplied as a standalone unit (11-32v)Easily fitted to: Tipper Vehicles, Excavators, Telehandlers, Cranes, Platforms, JCB’s etc…

Kit Includes:

HVDS Detector
Antenna Kit
Cable
Fixings
Instruction Manual

Features:

Detects the presence of overhead high voltage power lines up to 100m
Adjustable sensitivity
11-32v DC Operation
Plug & Play – No user calibration required
Audio Visual in-cab warning
Auxiliary Switching Function. Can be used to switch external devices on alarm
Auto resetting mute feature
Proven technology – 1000’s sold worldwide
Can be used on almost any type of vehicle

Deaths, injuries, & Damage Contact between overhead power lines and heavy equipment is dangerous, expensive and all too common. The High Voltage Detection System will alert your equipment operators of the presence of nearby high voltage power lines and give them the ability to avoid contact. Be aware of overhead live line dangers and hazards This innovative safety product offers good sensitivity, greater interference rejection, a wide input voltage range and sensitive range settings. This new device features a signal strength meter to give the operator an indication of proximity to a detected overhead power lines The product consists of a cab-mounted detection antenna and an in-cab-audio/visual warning

Look out – look up – help save lives!

Accidental contact with live overhead power lines results in fatal accidents every year and causes many serious injuries.

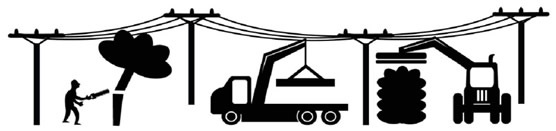

Work involving machinery capable of operating at variable heights is particularly high risk. In the construction sector for those working with lorry mounted cranes, Mobile Elevated Work Platforms (MEWP’s), scaffold poles, tipper vehicles, cranes and ladders and in agriculture involving combines, sprayer booms, materials handlers, tipper vehicles, Telehandlers and excavators. The rail industry is also a huge area of concern as many accidents occur when equipment and machinery collide with live 25,000-volt overhead railway cables.

UK-manufactured safety product represented by Utilicom designed to prevent vehicles and variable height machinery coming into contact with high-voltage overhead power lines. It offers audible and visual warnings, greater interference rejection, a wide input voltage range and has sensitive range settings. A signal strength meter gives the operator an indication of proximity to a detected overhead power line.

This is a simple self-install, vehicle-based system with in-cab options and all-weather external mounting at the operator work station and mounted in the buckets.
