TRANSMITTERS / SONDES
FLUSHABLE TRANSMITTERS / SONDES
HTP-15 | 8 KILOHERTZ FLUSHABLE TRANSMITTER
The HTP-15 flushable transmitter transmits using the 8 KiloHertz fre-quency. It is your go to when locating with our LineFinder 2200 receiver in nonmetallic lines and septic tanks. If you are locating around power lines this powerful highly efficient frequency will greatly reduce interference.
Black On/Off push button Floats for easy retrieval
Flashing LED indicates that the sonde is transmitting
Red LED will come on to indicate when the battery is no longer good Batteries are not replaceable
Eyelet for easy attachment to a fishing line
ATP-12 | 223 KILOHERTZ FLUSHABLE TRANSMITTER
The ATP-12 flushable transmitter trans-mits using the 223 KiloHertz frequency. It is your go to when locating with our Ardy receiver in nonmetallic lines and septic tanks. The ATP-12 is only com-patible with our Ardy receiver.
Black On/Off push button Floats for easy retrieval
Flashing LED indicates that the sonde is transmitting
Red LED will come on to indicate when the battery is no longer good Batteries are not replaceable
Eyelet for easy attachment to a fishing line
ATP-12 | 223 KILOHERTZ FLUSHABLE TRANSMITTER
The ATP-12 flushable transmitter trans-mits using the 223 KiloHertz frequency. It is your go to when locating with our Ardy receiver in nonmetallic lines and septic tanks. The ATP-12 is only com-patible with our Ardy receiver.
Black On/Off push button Floats for easy retrieval
Flashing LED indicates that the sonde is transmitting
Red LED will come on to indicate when the battery is no longer good Batteries are not replaceable
Eyelet for easy attachment to a fishing line
FTP-8 | 512 HERTZ FLUSHABLE TRANSMITTER
The FTP-8 flushable transmitter works in cast iron and nonmetallic lines along with septic tanks. The flushable transmitter uses the 512 Hz frequency and will work with our Digital LineFinder series along with the Ferris analog receiver.
Black On/Off push button Floats for easy retrieval
Flashing LED indicates that the sonde is transmitting
Red LED will come on to indicate when the battery is no longer good Batteries are not replaceable
Eyelet for easy attachment to a fishing line
MINIATURE SONDES
FTP-8 | 512 HERTZ FLUSHABLE TRANSMITTER
With its new and more durable and compact design the FD-10 is perfect for locating in lines as small as 2 inches. The FD-10 transmits using the industry standard 512 Hz frequency for locating in cast iron and nonmetallic lines.
Stainless Steel head for durability
Encased in a strong polycarbonate tube
Watertight Brass battery cap and 2 N cell batteries included
Dropcap available for use with 1/4″ pushrods (sold separately)
Our Spring Carriers are recommended to help protect your transmitter
FTP-8 | 512 HERTZ FLUSHABLE TRANSMITTER
With its new and more durable and compact design the FD-10 is perfect for locating in lines as small as 2 inches. The FD-10 transmits using the industry standard 512 Hz frequency for locating in cast iron and nonmetallic lines.
Stainless Steel head for durability
Encased in a strong polycarbonate tube
Watertight Brass battery cap and 2 N cell batteries included
Dropcap available for use with 1/4″ pushrods (sold separately)
Our Spring Carriers are recommended to help protect your transmitter

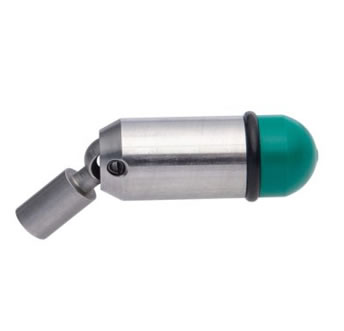

FM-05 | 512 HERTZ MINI SNAKABLE TRANSMITTER
For locating in small lines and p-traps The smallest snakable transmitter in our 512Hz line. This mini transmitter still has the power to get the job done. The FM-05 will help you locate in small cast iron and nonmetallic lines and with the swivel drophead as the battery cap it will allow you to pass through P-traps and tight elbows.
Battery caddie and 2-357/A76 button cell batteries included
Drophead is included with a size 12-24 female threaded end
Easily attaches to a 3/16” push rod
Replacement dropheads are available for purchase
Water tight
FD SERIES - 512 HERTZ SONDES

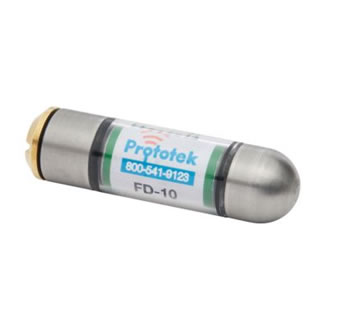

FD-10 | 512 HERTZ DURASONDE TRANSMITTER
With its new and more durable and compact design the FD-10 is perfect for locating in lines as small as 2 inches. The FD-10 transmits using the industry standard 512 Hz frequency for locating in cast iron and nonmetallic lines. Stainless Steel head for durability Encased in a strong polycarbonate tube Watertight Brass battery cap and 2 N cell batteries included Dropcap available for use with 1/4″ pushrods (sold separately) Our Spring Carriers are recommended to help protect your transmitter

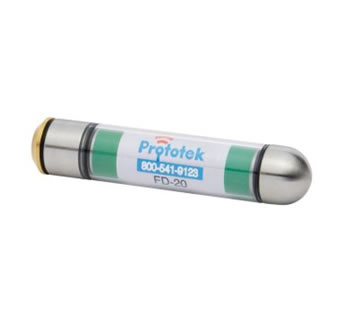

FD-20 | 512 HERTZ DURASONDE TRANSMITTER
The FD-20 is the most popular trans-mitter in our 512 Hz line for locating in cast iron and nonmetallic lines. And now with its new more durable design the FD-20 is ready to transmit even in the toughest terrain. Replaces our FV-20 transmitter Steel head for durability Encased in a strong polycarbonate tube. Watertight Brass battery cap and 1 AAA alkaline battery included Will work with any receiver that uses the 512 Hz frequency. For best results use one of our LineFinders Our Spring Carriers are recommended to help protect your transmitter
FD-40 | 512 HERTZ DURASONDE TRANSMITTER
The FD-40 is the largest in our 512 Hz line of DuraSonde transmitters. Now with a new more durable design it is ready to locate in deep cast iron and nonmetallic lines. Replaces our FV-40 transmitter Best used when mounted on a tractor camera Metal Endcap for durability Encased in a strong polycarbonate tube Watertight Brass battery cap and 4 C cell batteries included
HD SERIES - 8 KILOHERTZ

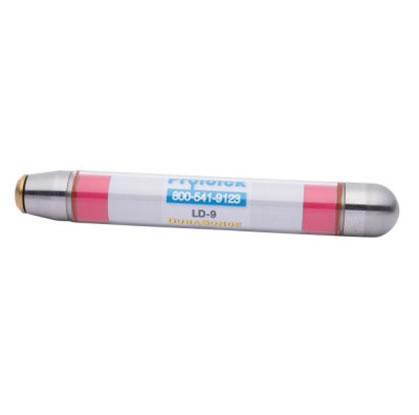

LD-9 | 16 HERTZ DURASONDE TRANSMITTER
The LD-9 is our smaller of the 16 Hz line of durasonde transmitters. LD-9 has a new more durable design and stronger signal. If you are going to locate in ductile iron or steel pipes this transmitter will do the job. This transmitter will also work great in cast iron where there is a lot of electrical interference.
Best used when locating in Steel or Ductile Iron
Stainless Steel head for durabilityEncased in a strong polycarbonate tube
Water tightBrass battery cap and 3 AAA alkaline batteries included
LD-14 | 16 HERTZ DURASONDE TRANSMITTER
The LD-14 is the larger in our line of 16 Hz DuraSonde transmitters. The LD-14 has a new more durable design. If you are locating in ductile iron or steel pipes this transmitter will do the job. This transmitter will also work great in cast iron where there is a lot of electrical interference.
Best used when locating in Steel or Ductile Iron
Stainless Steel head for durability Encased in a strong polycarbonate tube
Water tight Brass battery cap and 4 AA alkaline batteries included
LD-14 | 16 HERTZ DURASONDE TRANSMITTER
The LD-14 is the larger in our line of 16 Hz DuraSonde transmitters. The LD-14 has a new more durable design. If you are locating in ductile iron or steel pipes this transmitter will do the job. This transmitter will also work great in cast iron where there is a lot of electrical interference.
Best used when locating in Steel or Ductile Iron
Stainless Steel head for durability Encased in a strong polycarbonate tube
Water tight Brass battery cap and 4 AA alkaline batteries included
SONDE / TRANSMITTER ACCESSORIES
DROPHEADS AND DROPCAPS
DROPHEADS
Replacement Battery Cap for FM-05 Mini Transmitter
The Drophead is specifically designed to work with our FM-05 Mini-Transmitter. It acts as the battery cap that will directly screw onto the male end of your 3/16” push rod. The Female threaded end swivels to allow you to push through the tightest of corners. Designed to allow for flexibility around corners For use with FM-05 Female threaded end for use with 3/16” push rod Watertight
DROPCAP
For use with FD-10 Mini Transmitter
The Drophead is specifically designed to work with our FM-05 Mini-Transmitter. It acts as the battery cap that will directly screw onto the male end of your 3/16” push rod. The Female threaded end swivels to allow you to push through the tightest of corners. Designed to allow for flexibility around corners For use with FM-05 Female threaded end for use with 3/16” push rod Watertight
SPRING CARRIERS

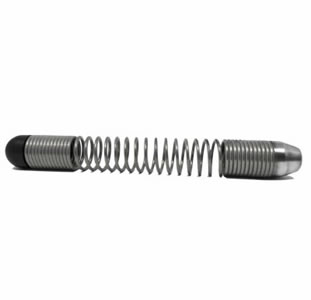

SPRING CARRIER 1.0
Lightweight use
For use with 1/4″ push rods and 3/8″ to 1/2″ sewer machines. The 1.0 Spring Carrier is the perfect accessory to our FD-10, FD-20 or HD-40 transmitters. The spacing in the coils will allow full signal strength from the transmitter. This also allows for flexibility around corners Designed to allow for full signal strength Helps protect and prolong life of transmitters Best used in 3-4″ lines Comes with spanner wrench and case Female threaded 5/16-18″ end for use with 1/4” push rod Plain end available to customize with sewer machines

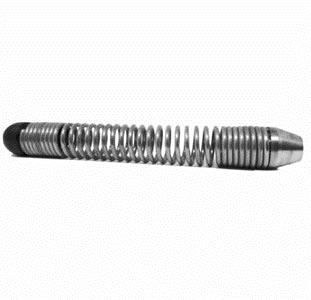

SPRING CARRIER 1.8
Medium weight use
For use with 5/16″ or 3/8″ push rods and 5/8″ to 3/4″ sewer machines. The 1.8 Spring Carrier is the perfect accessory to our FD-10, FD-20 or HD-40 transmitters. The spacing in the coils will allow full signal strength from the transmitter to your receiver. This also allows for flexibility around corners. Designed to allow for full signal strength Helps protect and prolong life of transmitters Best used in 3-6” lines Comes with spanner wrench and case Female 3/8-16″ threaded end screws directly on your 5/16” or 3/8″ push rod Plain end available Variety of couplers available for use with sewer machines.

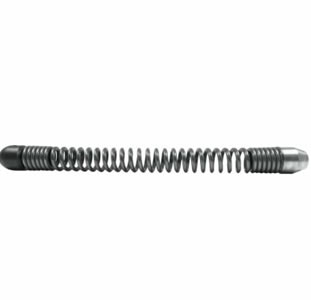

SPRING CARRIER 2.17
Heavy-duty use with sewer machines
The Drophead is specifically designed to work with our FM-05 Mini-Transmitter. It acts as the battery cap that will directly screw onto the male end of your 3/16” push rod. The Female threaded end swivels to allow you to push through the tightest of corners. Designed to allow for flexibility around corners For use with FM-05 Female threaded end for use with 3/16” push rod Watertight
